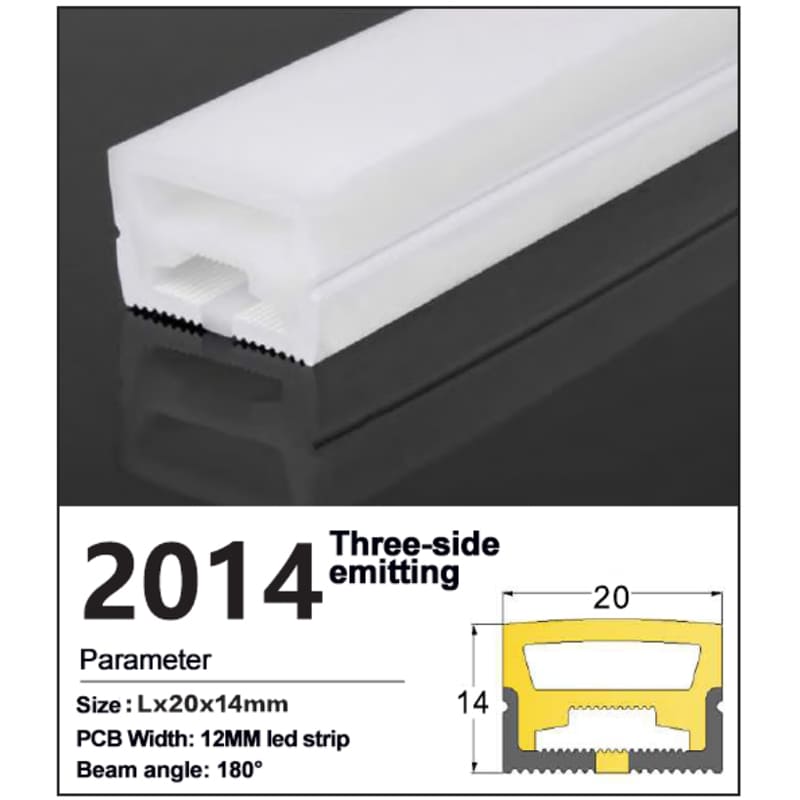

3 Sides Top view Silicone LED channel 20*14mm
3 Sides Top view Silicone LED channel, Model: LM-SC-F2014-3S
Lighting direction: 3 Sides top lighting
PCB direction: facing front top to luminous
Bending direction: Vertical
Section dimension: 20*14mm
Applicate PCB width: 8~10mm
Beam Angle: 180°
Material: Silicone
Packing: 50meters/roll
Description
3 Sides Top view Silicone LED channel is giving more possible for lighting design for Commercial lighting, Ad banner, Architectural Lighting, applicated for led strip, make led strips water Resistance, indoor or outdoor usage.
Note:
package not include led source. Price is for 1m.

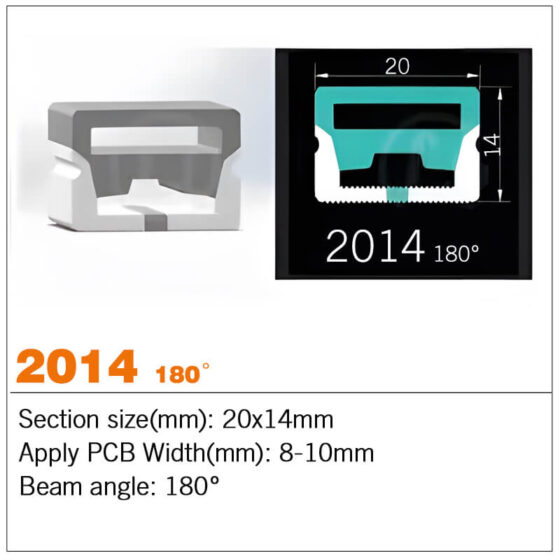

Blue color marked in drawing is lighting luminous part.
Features
1. Made from high-quality Silicone and is designed for flexible LED strips like neon profiles.
2. Waterproof, UV protection can be used indoor or outdoor.
3. Works great with the Flex LED Strips including White, Red, Green, Blue, RGB, and many more options available.
4. Offer in packing 50meters/roll
Attention:
1. Normal use of no yellowing, do not contact acid and alkaline substances or glue.
And pay attention: not to use acid and alkaline glue when installing, now install could use a clip keel chain. As experience: no problem in normal use for two to three years.
2. It is usually rolled up and stored. Normally one year to two years is fine.
Additional information
| Weight | 0.25 kg |
|---|
