Anti-glare LED Downlights 9W / 12W / 15W/ 20W, Cut hole 50mm / 70mm / 90mm
Anti-glare LED Downlights
Model No.: LM-SD-APS-XX
Dimension options: Dia62mm,Dia82mm,Dia103mm
Cut hole: Ø50~55mm,Ø70~75mm,Ø90~95mm
Power : 7W, 9W, 12W , 15W, 20W
LED Brand: Osram
Adjustable: 25° tilt
Beam angle: default 36° (options: 24°,36°,55°)
CRI: ≥93Ra
Driver: default included no dimming driver.
Options: Provide Dimming drivers including mains trailing edge,0-10v,DALI dimming.
Description
Anti-glare LED Downlights
Anti-glare LED Downlights is quite high quality, deep anti glare ceiling downlight. Deep anti-glare, Quality warranty 3 years.
Specification
LED Brand: Osram
CRI: ≥93Ra
Color temp options : 3000K, 3500K,4000K,5000K
Lumen: 95-105lm/W
Beam angle: Default 36° (options: 15°, 24°, 55°)
Adjustable: 25° tilt
Bezel color: matt white Bezel
Antiglare cover cup color : default matt white , options(matt black, Gun metal black)
Driver: included driver AC120-265V( Eaglerise ,not dimmable)

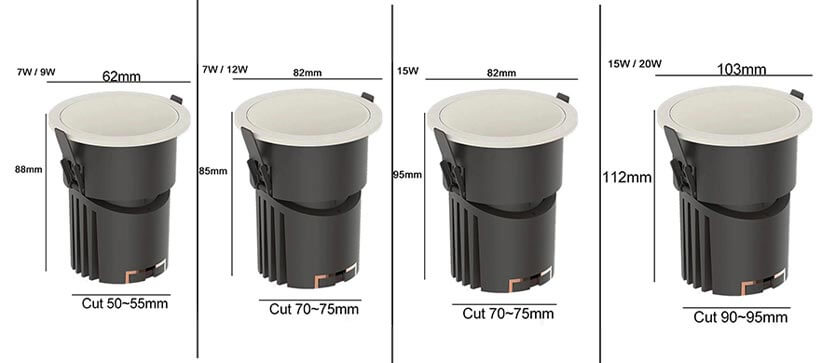

Dimensions: see above picture
- There are dimming methods available including mains trailing edge,0-10v,DMX,DALI dimming. Please contact us.
| Model | Watt | Diameter(mm) | Height(mm) | Cut Hole(mm) |
|---|---|---|---|---|
| LM-SD-APS-D6288-50 | 9W | 62 | 88 | 50~55 |
| LM-SD-APS-D8285-70 | 12W | 82 | 85 | 70~75 |
| LM-SD-APS-D8295-70 | 15W | 82 | 95 | 70~75 |
| LM-SD-APS-D103112-90 | 20W | 103 | 112 | 90~92 |
Color temperatures
Antiglare Cover Cup Colors
Features
Quality diecast aluminum
Solid aluminum lamp body, durable spring, easy installation.
Double anti-glare cover, eye protection and no flicker
Antiglare cover depth 55mm, led source depth 70mm. Fine and even light, effectively protecting your eyes.
High quality LED chips
- Osram LED, naturally bright, anti-glare and just the right brightness.
- High color rendering index ≥93Ra，Restore true colors
Quick heat dissipation hole design
Effectively protect the lamp life.
High-quality driver, long life and durability
- Brand driver Eaglerise is non-dimmable driver.
- we can also provide dimming driver.
Dimming drivers are including mains trailing edge,0-10v,DMX,DALI dimming.
Adjustable design
Available 25° tilt
Additional information
| Weight | 0.5 kg |
|---|---|
| Model | LM-SD-APS-D6288-50-7W, LM-SD-APS-D6288-50-9W, LM-SD-APS-D8285-70-7W, LM-SD-APS-D8285-70-12W, LM-SD-APS-D8295-70-15W, LM-SD-APS-D103112-90-15W, LM-SD-APS-D103112-90-20W |
| Color | 3000K, 3500K, 4000K, 5000K |
