Plug and Play LED Light Bar 12V 6-led cuttable- Play and plug cabinet LED

Sign up to view prices

PLAY AND PLUG LED Light Bar 12V 6-led cuttable

SKU: AL-FW-12V-120D-6leds Category:

Description

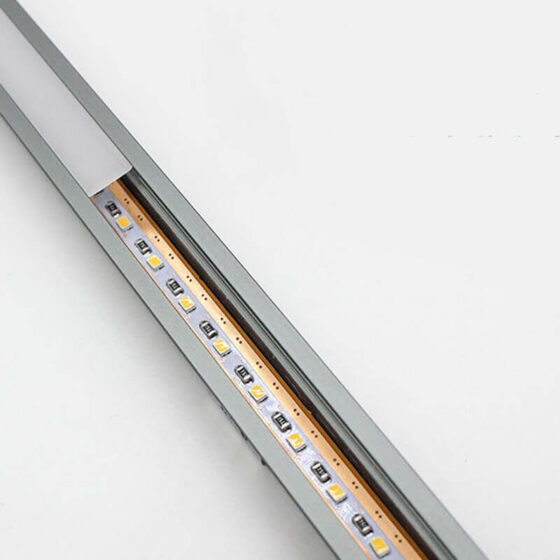

Plug & play LED Light Bar

Plug and play LED Light Bar 03

Product Description

Plug and play LED Light Bar give a simple fast and effective lighting solution for projects and enough for task lighting and accent lighting for workshops, under cabinets, bookshelves, showcase, display lighting , trade show and trailer interior. These LED Light bar Max length to 300cm in continuous runs, with aluminum profile are lightweight, durable.
Plug and play connector can make the led light bar easy and fast install and maintenance.

Key Features

  • Plug and play can easy install, maintenance, wiring, save time and maintenance cost.
  • DC12V input
  • Bars available in 100cm length default,
  • Maximum Run length : available customized length to Max 300cm
  • Indoor use
  • Available : 3000K, 4000K, 6000K
  • Up to 1000lm/m, 10W/100cm
  • High CRI of 85Ra+
  • Efficacy up to 100 lumens/W
  • Only Width 10mm, 12mm with edge width
  • Only height is 10mm
  • Fully dimmable

Each LED Light bar includes

  1. 1xLED Strips
  2. 1xAluminum profile + PC diffuse
  3. 1x 200cm cable with plug and play connector with DuPont plug
  4. 1x End cap
  5. 2x mounting clips

Dimensions & Structure

Dimension

Specifications

Model No.: AL-FW-12V-120D-6leds
LED Density: 120LEDs/m
Cut unit: 6leds
Volt: DC12V
CRI: ≥85Ra
Watt: 8W/m
Lumen output: 95-115lm/W
LED Color options: 3000K, 4000K, 6000K
Beam angle: 120degree
Dimension: W10*H10mm, W12mm with edge, see above picture
Cut out: 10x10mm
Length: default 100cm, Max 300cm (customized)
Finish: iron gray
Material: aluminum profile and PC diffuse
Lifetime: 50,000hours
Mounting type: recessed by mounting clip and Plug & Play connector
Applicated connector: Plug & Play connector

Features

Plug and play LED Light Bar 05

Cuttable 6-leds unit ,and easy wiring and connection by play and plug connector

Plug and play LED Light Bar 02

Easy wiring and connection by play and plug connector to power supply

Plug and play LED Light Bar 04
Plug and play LED Light Bar 07

Video instruction

Additional information

Weight 0.3 kg
Color

Warm White, Natural white, Cool white
